Novopetrivka Solar PV Power Plant

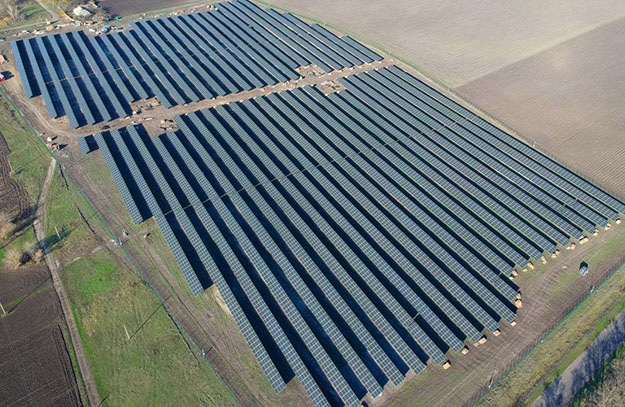

NOVOPETRIVKA PV Power Plant implemented for Maxi Solar (Umitli Group). PV-station built in the Dnipropetrovsk region on a land plot of 10 hectares. The capacity of installed solar modules is 6.54 MW, and electricity generation during the year reaches 8129 MWh.

PV-station constructed without concrete, and all the mountain structures, the switchgear building, the control center, and the 0.4/35 package transformer substations placed using screw piles. The project is fully implemented by AVENSTON, which provided the services of the general contractor EPC and completed all the work on a turnkey basis.

NOVOPETRIVKA PV Power Plant is an environmentally friendly construction, erected following the environmental protection. The task of the solar station is to produce “green” electricity without the environment harming.

Key project details:

• DC power – 6.5 MWp
• Status – completed
• Completion date – 2019
• Type of solar plant – on-grid (35 kV)
• Solar panels –PhonoSolar, mono-Si (375  W)
• Inverters – Huawei Sun 2000-60KTL and Huawei Sun 2000-50KTL
• Structures – ground-mounted, fixed, screw piles
• Plant area – 10 hа
• Location –Dnipro region, Ukraine

The ground based industrial solar power plant was built by Avenston to operate at a “green” tariff. According to the project, the work of this solar power plant is fully synchronized with the external grid. Design, supply of equipment and all construction and installation works were completed very quickly, as it was previously agreed with the customer. The commercial on-grid solar power plant is based on polycrystalline silicon solar modules and string solar inverters. Voltage conversion is carried out using several transformer substations, which are connected to a single switchgear. The construction of solar power plants of this type is one of the key competencies of our company, as well as services for the design or maintenance of solar power farms.
